DC barrel connectors

Halfandhalf

Halfandhalf

Well-Known Member
How would I take my driver off my fixture with a removeable connector? What kind of connector could I use? I keep seeing low voltage or too high voltage connectors in my searches. I'm running three vero 29's per fixture, 52vx3=156v in series, approximately. I wanna be able to disconnect from the driver for servicing them. Something safe but relatively cheap would be nice, I have wago connectors but I was thinking more like a barrel connector that I could just unplug.

A electrical conector block is all you need, it might not be as neat as a male/female connection but it works just the same.
Failing that any suitable voltage male and female connectors will work.

www.ebay.co.uk

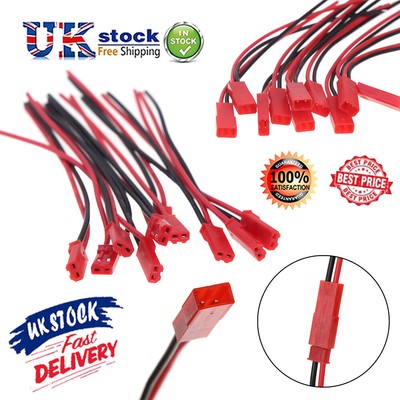

10 Pairs 100mm Male and Female JST Connector Plug for RC Lipo Battery Part | eBay

Included: 10 x 100mm Male JST connector plug. 10 x 100mm Female JST connector plug. Great for small Lipo battery and NiMh connection. Wire length: 100mm. Can be used on most mini RC helicopters and indoor 3D planes.
www.ebay.co.uk

Or

www.ebay.co.uk

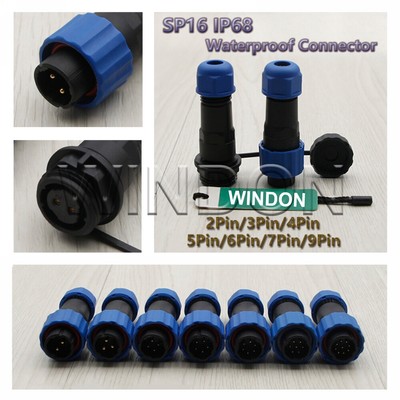

1/2Set Waterproof Connector Aviation Cable Plug Circular Socket Male and Female | eBay

IP68 SP16 Std Series IP68 Waterproof Circular Multipole Plug & Socket Connectors. Feature with one side is pin aviation,the other side is cable gland, it with waterproof cap. Housing gender: male female seat.
www.ebay.co.uk

Halfandhalf said:
How would I take my driver off my fixture with a removeable connector? What kind of connector could I use? I keep seeing low voltage or too high voltage connectors in my searches.
Click to expand...
The voltage ratting of a connector is the maximum safe voltage. Just don't exceed the voltage or amperage rating of the connector.

Star Dog said:
www.ebay.co.uk

10 Pairs 100mm Male and Female JST Connector Plug for RC Lipo Battery Part | eBay

Included: 10 x 100mm Male JST connector plug. 10 x 100mm Female JST connector plug. Great for small Lipo battery and NiMh connection. Wire length: 100mm. Can be used on most mini RC helicopters and indoor 3D planes.
www.ebay.co.uk

Or

www.ebay.co.uk

1/2Set Waterproof Connector Aviation Cable Plug Circular Socket Male and Female | eBay

IP68 SP16 Std Series IP68 Waterproof Circular Multipole Plug & Socket Connectors. Feature with one side is pin aviation,the other side is cable gland, it with waterproof cap. Housing gender: male female seat.
www.ebay.co.uk
Click to expand...
Do not use those micro JST connectors! Those are for small batteries in radio controlled planes and drones etc.
